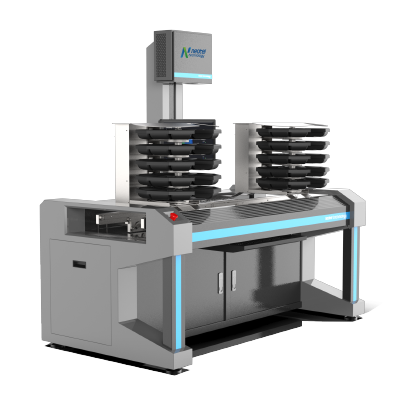

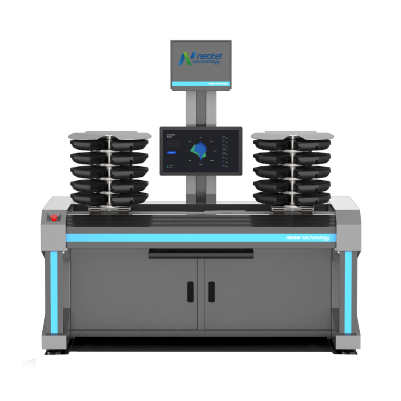

Intelligent THT assembly station with standardized component assembly procedure – Transform manual assembly into smart manufacturing
Download Brochure Watch Demo
Neo Station can transform your manual assembly into smart manufacturing needs. For low volume, high mix PCB assembly still needs manual operation, with the help of Neo Station, the operator can increase efficiency, accuracy with smart THT assembly station.
Smart Manufacturing Made Simple: Bridge the gap between manual assembly and full automation with our intelligent guidance system.
Visual component positioning with real-time guidance and verification for enhanced accuracy and reduced training time.
Simple, intelligent workflow that transforms your assembly process
Neo Station recognizes PCB assembly programming by RFID or barcode scanning, automatically loading the correct assembly process.
Component positions are projected onto the PCB, clearly showing where each component needs to be placed with assembly instructions on screen.
Built-in AOI system identifies defects and verifies correct component placement throughout the assembly process.
Comprehensive tools for intelligent assembly operations
Built-in optical inspection (AOI) system easily identifies defects in specific areas. The more data you collect, the easier it is to continuously improve assembly quality.
AI-based vision system enables hands tracking throughout the assembly process, providing real-time feedback and guidance to operators.
Image and video-based assembly instructions ensure highest quality and efficiency regardless of operator skills, language, or qualifications.
Enhanced learning through intuitive work instruction systems. Set up new employees for success with simple, visual training methods.
Start assembly processes by scanning codes on products. Linked assembly programming is automatically loaded for streamlined operations.
High data granularity with component ID tracking and image storage in database for comprehensive future verification and quality control.
Measurable improvements in your assembly operations
Projector-guided assembly ensures precise component placement, reducing errors and defects significantly.
Eliminate manual alignment and positioning, significantly improving assembly speed and productivity.
Easily reconfigurable for different products and assembly processes, adapting to changing production needs.
Integrated quality control ensures components are correctly positioned and aligned throughout the process.
Detailed technical specifications for optimal performance
| System Specifications | |||
|---|---|---|---|
| PCB Size | Up to 500×500mm | ||
| Station Type | Inline/Offline Configurable | ||
| Material Feeder | 2 Sets | ||
| AOI System | Optional Integration | ||
| Power Supply | 220V AC | ||
| Key Features | |||
|---|---|---|---|
| Recognition Method | RFID/Barcode | ||
| Guidance System | Projector-based | ||
| Vision System | AI-based Hands Tracking | ||
| Instructions | Paperless Video/Image | ||
| Data Storage | Component ID & Images | ||
